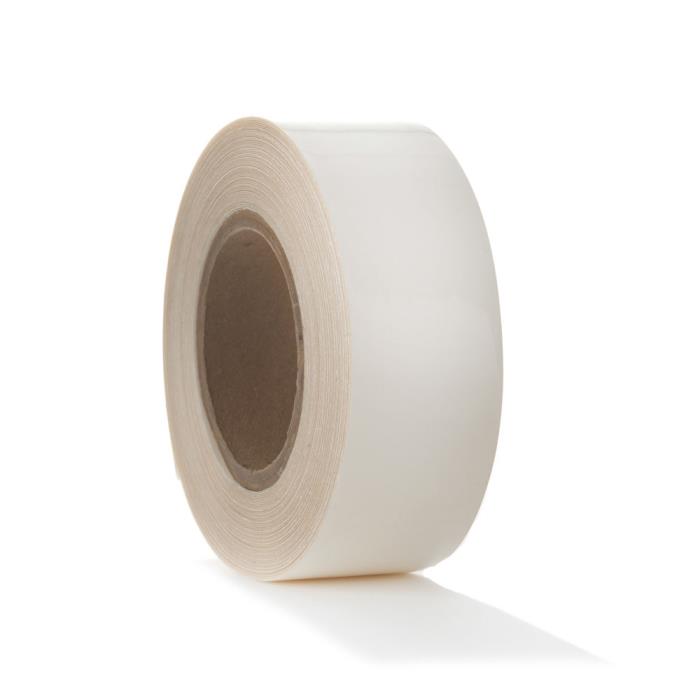

Patco 8210 Exterior Grade PU Surface Protection Tape

Patco 8210 Exterior Grade PU Surface Protection Tape provides abrasion and UV resistance when used for applications such as leading edge protection for wind turbine blades, surface protection on high-wear surfaces prone to scratching, chipping, and wearing, protects leading edges of aircraft wings, stabilizers, or struts. Transparent in color and also available in incremental sizes.

Files

Download file
TDSPatco8210_081822

Global
Standardized Name	Patco 8210 Exterior Grade PU Surface Protection Tape
Berry Global Entity	HHS Tape
Products	Tapes & Adhesives Automotive Tape Surface Protection Tape Industrial Tape
Brands	HHS Patco
Markets	Building & Construction Commercial Construction Shipping & Transportation Automotive Specialty Other Custom Converting
Capabilities	Manufacturing Tapes Manufacturing Adhesive Coating Adhesive Formulation/Mixing
Country Serviced / Available In	Global
Features / Benefits Polyurethane Film Backing Non-yellowing for long term applications Abrasion and UV resistant Printable and paintable Conformable for curves and irregular surfaces Transparent for easy inspection Acrylic Adhesive High strength bond to smooth or irregular surfaces Will not dry out, lift, or stain Kraft Paper Release Liner Smooth clean release - easy to use Die cuttable
End Use / Recommended Applications Surface protection on high-wear surfaces prone o scratching, chipping, and weathering. Leading edge protection for wind turbine blades. Protects leading edges of aircraft wings, stabilizers, or struts. Surface protection for air foil and ground effects panels on racing cars and trucks.

Spec

Clear

+ Global
Berry Catalog SKU	8210
Sample Request Available	No

+ Physical Properties
Product Construction	Single-Coated Tape
Color(s)	Clear

+ Packaging Data
Max Temp Range	257-302 °F

+ Non-Packaging Data
Gauge / Mil	14.5 mil
Gauge/Thickness Range	>13.0 mils
Carrier / Support / Facestock	PU (Polyurethane) Film
Adhesive Type	Acrylic
Liner Type	Paper
Peel Strength / Adhesion to Steel	110 oz.in
Tensile Strength	80 lb/in
Performance Category / Characteristics	UV Resistance Abrasion Resistance

+ CPNA
Adhesive	Acrylic
Application Surface protection on most high wear surfaces prone to scratching, chipping, and weathering: aircraft leading edges, wings, stabilizers and struts as well as airfoil and ground effects panels on race cars.
Brand	Patco
Carrier	Polyurethane
Construction	Single Coated with Liner
Features High adhesion. Long aging. Stays clear, allows for surface inspection. Protects surfaces, longer potential application life. Application ease and speed. Protects adhesive. Excellent for die-cutting. Non-yellowing. Abrasion resistant. Sticks well to many surfaces. Will not lift, stain or dry out. Allows wide width usage. Extra thickness for stay-flat and dimensional stability.
