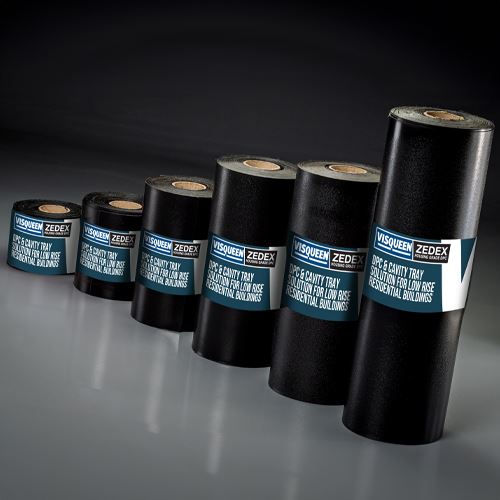

Visqueen Zedex Housing Grade DPC Cavity Tray

Detailing strip for critical junctions. Available in 300mm width. Ideal for detailing in damp protection and hazardous ground gas protection systems.

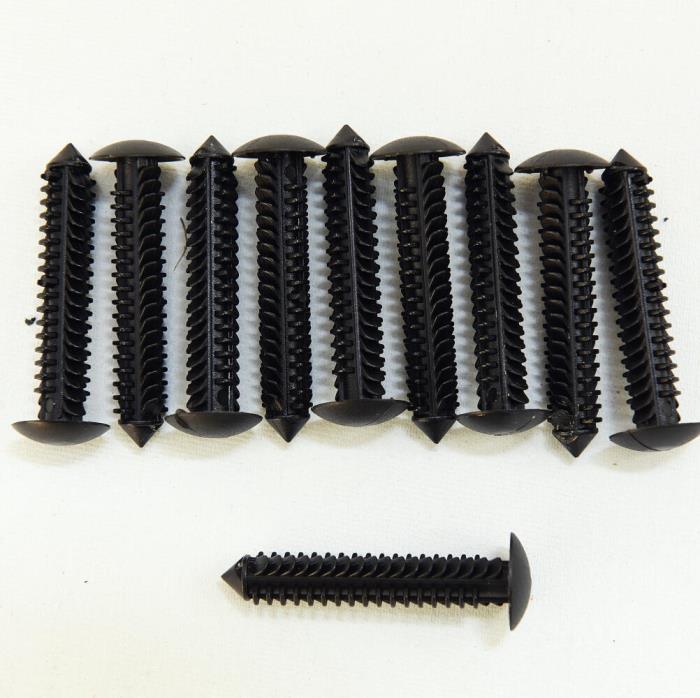

Surface fixing system for securing Zedex damp proof course. Easy installation with enhanced stability for UK & Ireland builds.

dpc, DPC, damp proof courses, Zedex, house, BBA, zedex, zedex, dpc, dpc,

https://websiteintegration.source.thenbs.com/product/a68cfc58-7256-5ac6-53f3-b3e7d43a96c6/add-to-spec?defaultButton=default&productListing=spec&size=responsive&showSpecHelp=true&product=a68cfc58-7256-5ac6-53f3-b3e7d43a96c6

https://websiteintegration.source.thenbs.com/product/a68cfc58-7256-5ac6-53f3-b3e7d43a96c6/download-bim?defaultButton=default&productListing=bim&size=responsive&product=a68cfc58-7256-5ac6-53f3-b3e7d43a96c6&customiseBim=false

Third party accreditation (BBA 94/3059) UKCA UKNI CE to EN 14909:2012 Type A Visqueen certified with Quality Management System ISO 9001:2015 Visqueen certified with Occupational Health and Safety System ISO 45001:2018 Visqueen certified with Environmental Management System ISO 14001:2015

Visqueen Zedex Housing Grade Damp Proof Course is designed for residential buildings up to and including 3 storeys high. The DPC is suitable for installation in internal walls to prevent rising damp. The DPC is also suitable for installation in external cavity walls with a masonry outer leaf, including walls with a light gauge steel frame, structural timber frame or masonry inner leaf. The DPC can be site formed into built-in or surface fixed cavity trays to manage the downward passage of water in cavity wall applications. The DPC can also be used on sleeper walls below a ground floor construction e.g. beam and block floor system.

Visqueen Zedex Housing Grade Damp Proof Course should be stored vertically, under cover in its original packaging. Care should be taken when handling the product in line with current manual handling regulations.

The Visqueen Zedex Housing Grade Damp Proof Course can be cut with a sharp retractable safety knife or robust scissors.

DPCs and DPC cavity trays systems to be designed and installed in accordance with the relevant sections of BS 8215:1991, PD 6697:2019 and BS 8000-3:2020. When built into a masonry wall construction Visqueen Zedex Housing Grade Damp Proof Course should be installed on an even bed of wet mortar, and any perforations in adjacent courses of masonry should be completely filled with mortar. To ensure mortar adhesion, as soon as possible after laying the DPC, lay at least one further course of masonry including a bed of mortar. If positioned on the sleeper walls below a suspended ground floor e.g. beam and block floor system, the DPC can be dry laid, however all sharp protrusions must be removed from the substrate. The DPC must extend through the full thickness of the masonry wall, including pointing, applied rendering or other facing materials. When used as a site formed cavity tray, the DPC can be either built-in to the inner leaf or surface fixed to the cavity face of the inner leaf. When surface fixing the cavity tray, the substrate should be primed with Visqueen HP Tanking Primer and allowed to dry. The DPC should be bonded to the inner leaf using Visqueen 100mm Double Sided Butyl Tape and permanently secured using Visqueen Fixing Strip and fixings suitable for the substrate. Visqueen Fixing Pins for the rigid urethane foam insulation of a SFS substrate, and fixing pins for a masonry substrate are available. When using a hammer tacker to secure the DPC to an OSB3 substrate of a timber frame construction, minimum 8mm shank austenitic stainless steel staples should be used at minimum 150mm centres. To simplify complex or awkward junctions e.g. corners, changes of level, arch windows etc, an extensive range of Visqueen Preformed Units are available. All DPC to DPC laps and DPC to Visqueen Preformed Unit laps should be a minimum of 100mm and bonded with Visqueen 100mm Double Sided Butyl Tape.

It is recommended that Visqueen Zedex Housing Grade Damp Proof Course and all associated system components should not be installed below 5°C.

Where a high performance DPC is required e.g for commercial or multi storey constructions, use Visqueen Zedex CPT High Performance Damp Proof Course. Where a gas DPC conforming to the specification requirements of BS 8485:2015 + A1:2019 is required, use Visqueen Ultimate Gas Damp Proof Course. For built-in internal and external corners Visqueen Preformed Corner Units should be used see PFU-553 (90° unit) or PFU-501 (sloping unit). For surface fixed internal and external corners Visqueen Preformed Corner Units should be used see PFU-554 (90° unit) or PFU-502 (sloping unit). For additional detailing information, contact Visqueen Technical Services +44 (0) 333 202 6800 The information in this datasheet was correct at the time of publication. It is the user’s responsibility to obtain the latest version of the datasheet as it is updated on a regular basis. The information contained in the latest datasheet supersedes all previously published editions.

Refer to the Visqueen Zedex Housing Grade Damp Proof Course safety datasheet (SDS).
