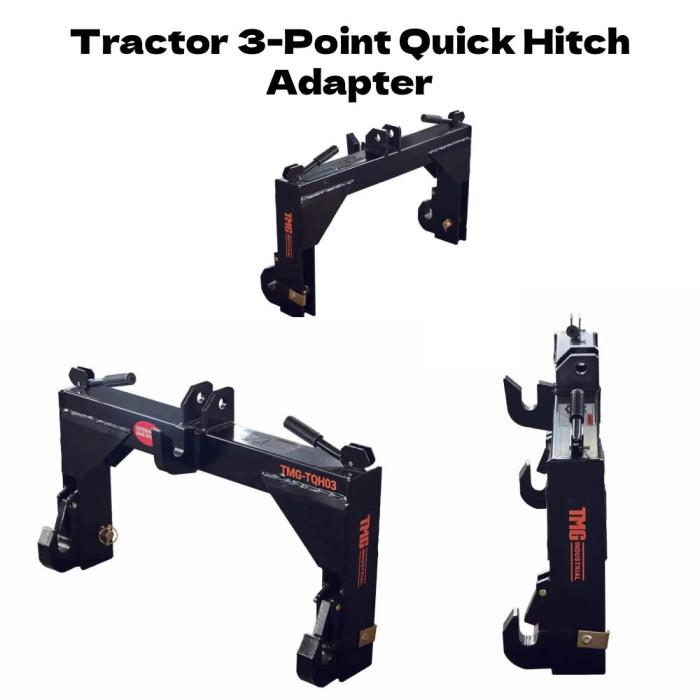

Tractor 3-Point Quick Hitch Adapter for Logistics Yard OperationsIntroduction: Finnish Multi-Season Facility Needs

Finnish logistics yards face snow clearing, gravel spreading, and container moving. Tractors perform these tasks using various attachments. Changing attachments traditionally requires fifteen minutes of manual labour. A tractor 3-point quick hitch adapter reduces this time to sixty seconds. Finnish facilities with large yards benefit from faster attachment changes. This efficiency matters during short daylight winter hours. The adapter fits Category 2 hitches common on 90 horsepower tractors. Winter temperatures often drop below minus twenty degrees Celsius. Quick connection reduces exposure to severe cold for yard personnel.

Technical Overview and Logistics ApplicationsHitch Design Principles

The adapter connects to tractor three-point arms permanently. Quick-release hooks engage attachment pins automatically. Operator stays in tractor seat during connection. Locking mechanism secures attachment without tools. Capacity reaches 1633 kilograms (3600 pounds). The adapter body uses high-strength steel for durability. Pivot points include grease fittings for smooth operation.

Warehouse Yard Uses

Snow blower changes to bucket in one minute. Gravel spreader to pallet fork swaps. Container mover to mower deck transitions. Sweeper to blade attachment conversions. Aerator to roller changes for summer maintenance. Trailer moving using drawbar attachments. Brush clearing with forestry mulcher units. Grader blade for ice surface levelling.

Efficiency and Safety ContributionsOperational Productivity

Attachment change time drops from fifteen to one minute. Tractor utilization increases across shift. One operator handles multiple yard tasks. No wrenches or hammering required for changes. Reduced idle time during winter snow events. Daily change frequency can exceed ten swaps. Annual labour savings reach one hundred hours for active yards.

Safety Enhancements

No manual lifting of heavy attachment pins. Operator stays protected inside cab during changes. Positive lock prevents accidental detachment. Clear visual confirmation of hook engagement. Reduced back strain from ground-level connection work. Hands remain clear of pinch points during coupling. Lower accident risk in slippery winter conditions.

Technical Specifications and CompatibilityHitch Category and Capacity

Category 2 hitch fits tractors from 40 to 90 horsepower. Lift capacity is 1633 kilograms at hook points. Adapter weight adds 45 kilograms to three-point arms. Pin spacing meets ASAE standard dimensions. Compatible with most European tractor brands including Valtra, John Deere, and New Holland. The adapter uses standard 25.4 millimetre lower pin diameter.

Attachment Requirements

Attachments need standard Category 2 pin spacing. Pin diameter must be 25.4 millimetres. Implement mast height requires clearance for top hook. Universal quick hitch adapters work with non-standard implements. Welded pin adapters available for older attachments. Bushing sleeves adapt Category 1 pins to Category 2 spacing.

Factors Influencing Performance and Longevity Attachment Preparation

Lower link pins must be clean and greased. Implement stored on level ground for easy approach. Pins aligned within five degrees of horizontal. Top link bushing condition affects hook engagement. Bent pins prevent proper latching. Rusty surfaces require cleaning before connection attempts.

Hitch Adjustment

Check lower arm spacing before each season. Verify top hook height matches implement mast. Adjust leveling rods for implement weight distribution. Test latch spring tension every fifty hours. Lubricate pivot points with lithium grease monthly. Worn components show visible play when lifted.

Environmental Factors

Mud on attachment pins blocks latch mechanism. Snow packing requires clearing before connection. Rusted pins need wire brushing or replacement. Frozen dirt on mast prevents top hook engagement. Winter storage indoors extends component life. Salt exposure from road de-icing accelerates steel corrosion.

Safety Measures and Best Practices Connection Guidelines

• Stop engine before inspecting
• Engage parking brake fully
• Verify latch visual indicator
• Test lift without load first
• Check pin engagement visually

Operational Safety

Never exceed 1633 kilogram capacity. Avoid sudden starts with heavy implements. Check pin engagement after rough terrain. Transport attachments at reduced speeds. Lower implements when parking overnight. Use safety chains for road transport. Keep bystanders clear during connection.

Maintenance Protocol

Clean latch mechanism after muddy work. Apply light oil to pivot points weekly. Replace worn latch springs immediately. Inspect for cracks before winter use. Document all service dates for warranty. Check bolt torques every one hundred hours.

Equipment Types and Complementary Accessories

Quick hitch adapters come in Category 1, 2, or 3 sizes. Category 2 suits most logistics yard tractors. Complementary accessories include bushing sets for undersized pins. Top link adapters for mast clearance issues. Hydraulic top link for implement angle control. Pin grabber hooks for non-standard spacing. Spreader bars for offset implements. Safety chain kits for heavy loads. Storage rack for quick attachment changes. Grease gun for pivot point maintenance. Pin alignment tool for difficult hook-ups.

Advantages and Limitations

Advantages:

• Sixty second attachment changes
• 1633 kilogram lift capacity
• No tools required for connection
• Operator stays in cab
• Fits Category 2 tractors
• Positive lock indicator
• Reduces manual handling
• Works in low temperatures

Limitations:

• Requires ASAE standard pins
• Not for Category 1 hitches
• Adds 45 kilogram weight
• Non-standard implements need adapters
• Mud interferes with latching
• Top link clearance varies
• PTO shafts may need extension
• Initial purchase cost required

Real-World Logistics Case

A Finnish logistics hub near Oulu managed a fifteen hectare yard. Tasks included snow clearing, container shuffling, and gravel maintenance. The facility used a 90 horsepower tractor but spent forty minutes daily on attachment changes. Winter temperatures averaged minus fifteen degrees Celsius. Management installed a tractor 3-point quick hitch adapter. Attachment change time dropped to ninety seconds per swap. Total daily change time reduced from forty to six minutes. During winter, the tractor switched between snow blower, pusher, and salt spreader within five minutes. The yard maintained clear pavement throughout blizzard conditions. Summer container moves used pallet forks rated to 1600 kilograms. No attachment detachment incidents occurred in twelve months. The adapter paid for itself within one winter season through labour savings. The facility ordered a second unit for their backup tractor.

Conclusion and Future Industry Direction

Finnish logistics yards increasingly use tractors for multi-purpose work. Quick hitch adapters maximise equipment utilization across seasons. Future designs will include electric latches with remote cab control. Weight sensors may prevent overload conditions. Automatic pin lubrication systems could reduce maintenance. Quick hitch adoption will grow as yard task variety increases. Manufacturers may integrate hitches into new tractor production. Logistics professionals should evaluate adapters for any tractor operating multiple attachments. Proper pin preparation and weight limits remain essential for safety. The combination of sixty second changes and 1633 kilogram capacity makes this adapter suitable for diverse yard operations. Cold weather testing confirms reliability at minus twenty degrees Celsius. Investment in quick hitch technology reduces labour costs and improves winter responsiveness.
