    Business form print inspection system

    Quick ContactPrint
    Business form print inspection system

    Application

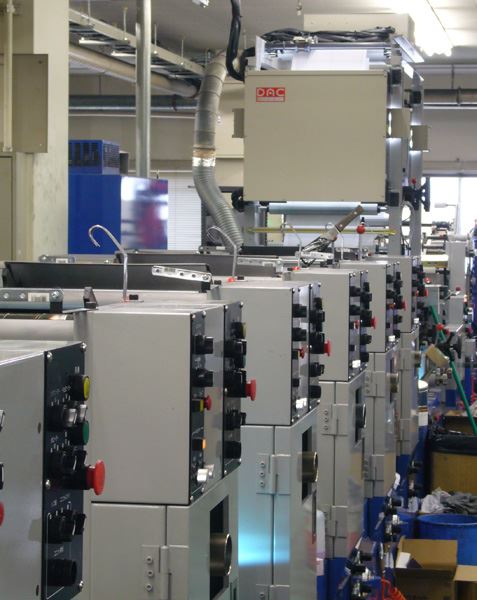

    Business form print inspection system detects dirt, ink spatter, incomplete text and broken text on both sides of printed products of high-speed online printing.

    Features

    • Special detection circuits for text and color defect, dedicated to business form industry
    • High speed 3 CCD camera with high-speed processing technology realizes a high performance and high accurate inspection.
    • Position correction function(XY correction) for sheet meandering and deviation due to machine delivery
    • Both sided inspection is possible by 1 inspection system
    • Linking to defect data management system makes it possible to conduct a traceability on stored defect data anytime.

    Trinity Well SLC701(2 cameras)

    • Machinery

    • Inspecting, Detecting, Checkweighing Machinery

    Business form print inspection system

    Overview

    Reference
    Trinity Well SLC701(2 cameras)
    Reference - Sub
    Business form print inspection system
    Machine TypeMachinery. Inspecting, Detecting, Checkweighing Machinery

    General

    Detailed Description

    Basic specification

    Model

    Trinity Well SLC701(2 cameras)
    Camera specification

    2048 pixels
    Camera type

    CCD-3LINE (SLC7series)
    Min. resolution
    for both sides

    0.25mm/pixel(X)
    0.25mm/pixel(Y)
    Inspection speed

    150m/min(Depends on machine specification)
    Inspection target

    Printed paper
    Inspection width

    500mm(Corresponding to each inch)
    Target defect

    Ink spatter, foreign material, missing ink, oil spot
    Detection circuit

    Streak, color extraction, pale color,
    text defect, minute sized defect
    Defect filing

    6-8 defects per 1 repeat
    Features

    Display a developmental distribution of defect.
    Defect image and location can be confirmed.(Printing out)
    Interactive user-friendly operation by touch panel
    Option

    Quality management software "Gallery"
