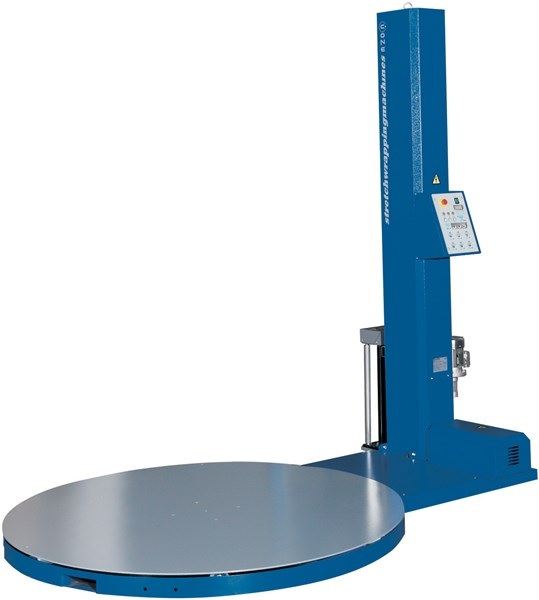

TURNTABLE

Available with either Electronic break or power stretch carriage

1650mm diameter turntable for UK Pallets

Turntable speed adjustable from 3 - 12 rpm

80mmm Height turntable with 8mm thick top plate

Turntable slew ring with sattelite bearings allowing up to 1200 kg weights

Chain driven turntable

Fixed start and stop point

Turntable jog control

Excellent portability with fork voids front and rear

High gear ratio on turntable preventing easy rotation after wrapping cycle

Ac motor driven turntable 5 - 12 RPM with soft start controlled by inverter

MAST

Strong hinged steel mast for easy transportation

2200mm wrapping height - Options available for higher masts

Unique carriage lifting without chains or belts

automatic pallet height detection

CARRIAGE

Easy thread system for quick stretch film loading

Electronic break or power stretch option

Anti-crush protection under carriage

Easy film release when pulling film

Switch on carriage door preventing pre-stretch rollers operating when open

CONTROL PANEL

Fault auto-diagnostic with code

E-stop

Carriage speed adjustment

Turntable speed adjustment

Film tension adjustment

Bottom and top wrap adjustment

Unique "playback mode" will "remember" all parameter inputs from previous cycle

3 working cycles - up/down, Up only, top sheet cycle

Manual control up and down
