Description

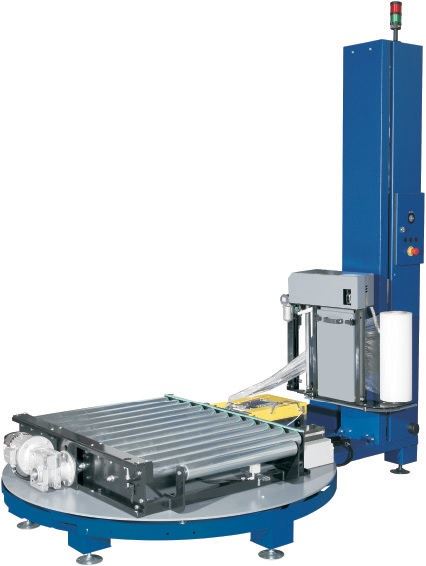

- The automatic cycle includes the loading of the pallet, attachment of the film, the wrapping cycle , the cutting of the film and hot sealing followed by the the un-loading of the pallet
- Blown air to blow the cut film into the holding pliers
- Roller conveyor on the turntable
- Power pre-stretch carriage
- Electronic printed circuit board for the management of the cycle
- Frequency controller for carriage speed adjustment
- Frequency controller for turntable speed adjustement
- Loading plate ø 2000 mm
- Maximum height of pallet: 2100 mm
- Maximum size of the pallet: 800x1200 mm
- Maximum loading weight: 1700 kg
- Power board IP54
- Photocell for pallet height detection
- Safety stop at the base of the carriage
- Stop at 0 position
- 3 password levels (including lock password)
- Adjustable parameters by the control panel without password: cycle selection, bottom laps, top laps, topsheet cycle parameters, rotation speed, carriage ascent speed, carriage descent speed, film tension, starting wrapping height
- 3 working cycles: ascent/descent; topsheet; layers
- Storage of 32 end user programs
- 4 operating modes: manual, semiautomatic, fixed height, automatic
- Strenghtening operation
- Acoustic warning at the cycle beginning and stop
- Autodiagnostic
- Wrapped pallet counter
- Powder coating
- Braked turntable at the end of the cycle
