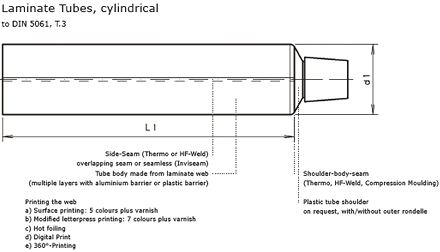

Size table

Diameter d1	Kind of Web		Length L1 from/to	Shapes of nozzle, existing standard					Thread
mm	PBL	ABL	mm	Standard	Striping Shoulder	"Dome" Shoulder	Canula	Reduced Orifice
13.5*		x	45/ 120				x		M6
16*		x	65/ 120
19*		x	75/ 120
22		x	75/ 120	x				x	S13
25		x	100/ 160	x					S13
28	x	x	80/ 195	x	x			x	S13
30		x	100/ 195	x	x			x	S13
35	x		100/ 200	x	x	x		x	M11/M18/ S13/So28
35		x	100/ 200	x	x			x	S13
40	x	x	80/ 195	x					M15/ Push-On
50	x	x	80/ 195	x					Push-On
