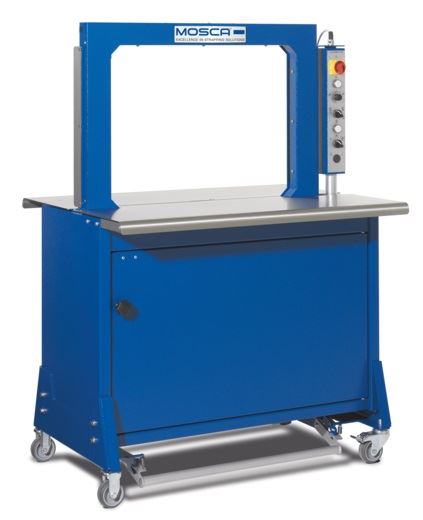

Description

- Thermostatically controlled heat-weld sealing system
- Wear-free DC drive, brushless motor technology
- Strap end detection with ejection of remaining strap
- Automatic strap loop ejection
- Turning table 90° - 0° - 90°
- Easy strap coil change and threading system
- Wear-free, controlled strap track system
- Adjustable strap tension via potentiometer
- Selector switch for soft strapping extremely delicate bundles
- Energy saving drives
- Electronic controls
- Hinged table plate
- Sturdy foot pedal on both sides
- Structural coating RAL 5010, gentian blue
- Table length 813 (600 mm on request)
- Now available in LARGE arch size 1250mm x 600mm

Variants & Options

- Automatic strap release via light sensor with selection of single or permanent strapping and strap tension control via light barrier
- Super soft strapping of single products

Technical details

Capacity: up to 55 cycles / min. at 5 mm strap width

Straps: 5, 8 or 12 mm

Strap coil dispenser:
Core diameter: 200 mm
Core width: 190 mm
max. outer diameter: 430 mm

Electricity:
Voltage: 230 V, 50/60 Hz, 1 Ph
Power consumption: ca. 0.2 kW

Sealing unit: Standard 3 sealing unit

Frame sizes:
600 x 500 mm
800 x 600 mm
1250 x 600 mm
