Description

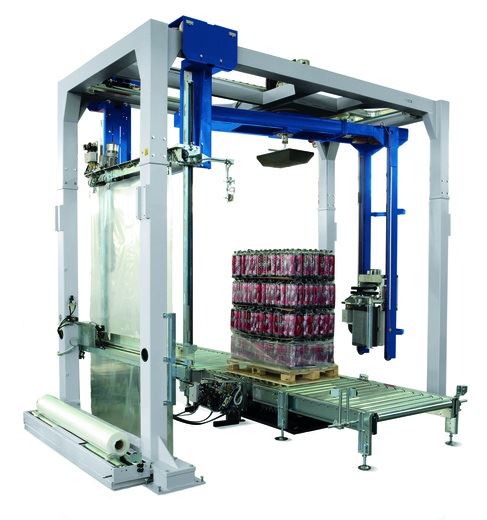

- Fully automatic stretch wrapping machine with rotating arm
- Capacity up to 70 pallets / hour

Technical details

Technical Data:
Min. conveying height: 300 mm
Rotational speed: 32 rpm, with Top-Inside 30 rpm
Max. 0utput capacity: 52 pallets/h, with Top-Inside 41 pallets/h

Electricity:
Power supply voltage: 3 / N / PE / 400 V
Supply frequency: 50 Hz
Installed total capacity: 6.5 KW, with Top-Inside 7 KW
Protection electr. equipment: IP 54

Pneumatics:
Air pressure : 6±1 bar
Air consumption: 250 Nl/min, with Top-Inside 350 Nl/min

Product Dimensions:
Min. pallet size WxL: 600 x 800mm
Max. pallet size WxL: 1200 x 1200mm
Min. product height incl. pallet: 500mm, with Top-Inside 1000mm
Max. product height incl. pallet: 2000mm

Other dimensions on request
