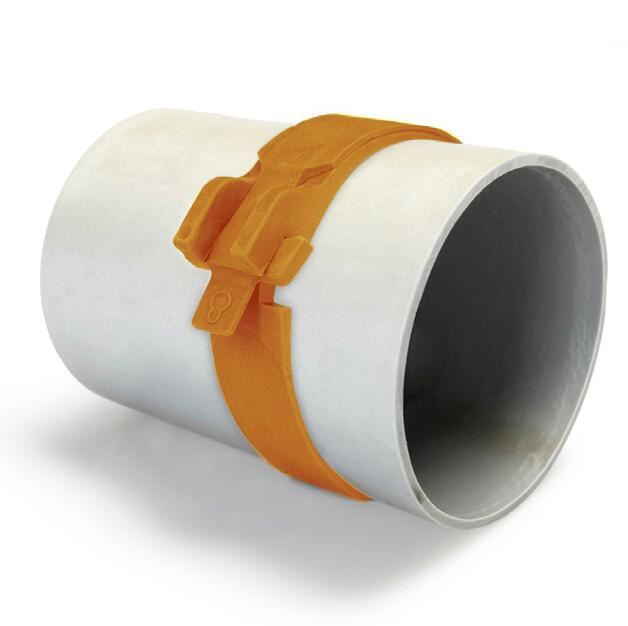

Visqueen IGW Pipe Strap is a swellable hydrophilic polymer waterstop. Manufactured from thermoplastic synthetic rubber, the product is lightweight and highly flexible. The strap is coloured orange for ease of recognition. Visqueen IGW Pipe Strap is supplied in packs of 5 straps.
Global | |
| Meta title | IGW Pipe Strap | Seal Pipes Through Concrete Waterproofing |
|---|---|
| Meta Description Waterproof pipe penetrations in concrete with IGW strap. Swelling sealant strip. Use with Visqueen IGW systems in UK & Ireland builds. | |
| Products |
|
| Brands |
|
| Markets |
|
| Factory Locations |
|
| Country Serviced / Available In |
|
| Features / Benefits Versatile - suitable for 110mm to 125mm outside diameter pipework | |
| End Use / Recommended Applications Agrement certified - third party accreditation
Versatile - suitable for 110mm to 125mm outside diameter pipework
Inbuilt activation delay - suitable for use in wet weather conditions
No tools required for installation | |
+ Visqueen | |
| Publish Date | 08/09/2025 00:00:00 |
|---|---|
| Product Keywords pipe strap, waterstop, waterbar, IGW 5, 10, IGW5, IGW10, pipestrap, puddle flange, top hat, tophat, BBA, BDA | |
| Branch ID | 1304 |
| Approvals and Standard Third party accreditation (BBA 21/5905)
Designed for use as part of a Type B structurally integral system to BS 8102: 2022
Visqueen certified with Quality Management System ISO 9001:2015
Visqueen certified with Occupational Health and Safety System ISO 45001:2018
Visqueen certified with Environmental Management System ISO 14001:2015 | |
| Usage Visqueen IGW Pipe Strap is specifically designed for sealing around pipework positioned in below ground cast in-situ concrete structures. The product blocks the passage of ground water at the pipe-concrete interface. The product is suitable for 110mm to 125mm outside diameter pipework.
For salt water or contaminated water applications, contact Visqueen Technical Office +44 (0) 333 202 6800. | |
| Storage and Handling Store Visqueen IGW Pipe Strap in a clean, dry environment in its original packaging. The product should not be exposed to long periods of ultraviolet light or weathering.
Care should be taken when handling the product in line with current manual handling regulations. | |
| Preparation Ensure the substrate is free from contamination such as concrete residue, dust, dirt, oil or grease. Ensure the substrate is not water logged, however a damp substrate can be tolerated. | |
| Installation Extend the pipe strap around the pipe and interlock the crossed end of the strap into the toothed recess. Ensure that the strap is tight against the pipe and that the tail end of the strap lies flat against the pipe and is not twisted or folded.
The pipe strap should be positioned so as to ensure a minimum of 80mm concrete coverage at all edges.
Once applied, pour concrete over the exposed pipe strap within 48 hours. Prior to pouring the concrete, the pipe strap should be inspected for damage and premature swelling. Damaged and/or swollen product must be replaced at this stage.
When pouring the concrete, compact well around the pipe strap taking particular care not to dislodge or damage the product during the process. | |
| Usable temperature range It is recommended that Visqueen IGW Pipe Strap should not be installed below 5°C. | |
| Additional information The information in this datasheet was correct at the time of publication. It is the user’s responsibility to obtain the latest version of the datasheet as it is updated on a regular basis. The information contained in the latest datasheet supersedes all previously published editions. | |
| Health and safety information Refer to the Visqueen IGW Pipe Strap safety datasheet (SDS). | |
