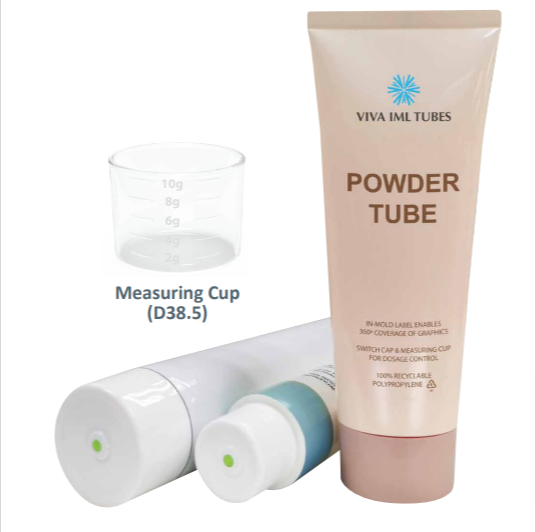

38.5 mm Round IML Tube sleeves
Overview | |
| Reference - Main | D38 |
|---|---|
| Reference - Sub | Tube sleeves - Injection molded |
| Packaging Type | Tubes |
| Packaging Sub-Type | Tubes - Flexible (Extruded). Tubes - Plastic |
| Market - Major | Beauty, Personal Care. Health |
| Market - Segment | Personal Care. Pharmaceuticals |
| Market - End Use | Body Care. Skin Care. Deodorants. Illness Prevention |
Characteristics | |
| Materials | Plastic - PP. Plastic - PCR |
|---|---|
| Viva Tube Options |
|
| PCR Percentage | 87 |
| Shape - Top Down | Cross Section Circular |
| Available Colors | Custom Color |
| Features | Active, Smart Packaging. Sustainable Packaging. Mono-Material |
| Feature Notes 100% PCR cap & applicator | |
Dimensions | |
| Tube Diameter | 38.5 mm |
|---|---|
Neck | |
| Neck Types | Screw Neck. Snap On |
|---|---|
| Neck Finish | VIVA R-D38.5 snap-on |
Dispensing | |
| Orifice Size (A) | 8 mm |
|---|---|
| Orifice Size (B) | 8.5 mm |
| Flip Top - Diameter | 1.5, 2, 3, 5, 6 |
| Reducer Plugs - Diameter | 2, 3, 5 |
| Nose 1 Plug - Diameter | 1.2 |
| Nose 2 Plug - Diameter | 3 |
| Nose 3 Plug - Diameter | 4, 5, 6, 7 |
Tube volume and size range | |
| Min Tube Volume | 75 ml |
|---|---|
| Max Tube Volume | 185 ml |
| Min Tube Length | 100 mm |
| Max Tube Length | 200 mm |
Manufacturing | |
| Manufacturing Technology | IML - In-Mould Labelling |
|---|---|
| Decoration Options | In Mold Labelling. Coating. Coating - Glossy. Coating - Soft Touch |
| Decoration Notes In-mold label decoration, including Velvet Soft Touch | |
