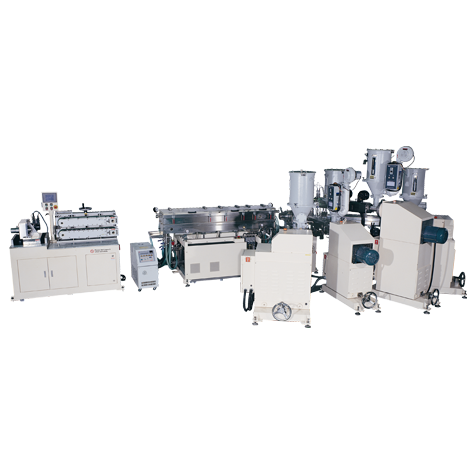

Multi-Layer Co-Extrusion Line
EDC-08-05
(Other Model: EDC-16-05)
THE FEATURES OF CO-EXTRUSION TUBE
Plastic material has its own characters. In co-extrusion system. We use and combine several kinds of materials, therefore, the characters of single layer tube can't compete with the complex characters of co-extrusion tube.
Glossy surface (using: EVOH / RESIN / PE)Extensive color combination (using: PE + PEARL / PE + PIGMENT)Excellent barrier property (using: PE / TIE RESIN / EVOH / TIE RESIN / PE)Scratch and dust free (using: LDPE / LDPE / LLDPE)Co-extrusion is used on pesticide container, toothpaste, side window, multicolor, long preservative cosmetic... etc.
Glossy surface (using: EVOH / RESIN / PE)Extensive color combination (using: PE + PEARL / PE + PIGMENT)Excellent barrier property (using: PE / TIE RESIN / EVOH / TIE RESIN / PE)Scratch and dust free (using: LDPE / LDPE / LLDPE)Co-extrusion is used on pesticide container, toothpaste, side window, multicolor, long preservative cosmetic... etc.
MAIN SPECIFICATIONS:
Screw dia (inner): 45 mm. L/D: 32/1Screw dia (resin): 35mm. L/D: 30/1Screw dia (EVOH): 30mm. L/D: 25/1Screw dia (outer): 40mm. L/D: 32/1Screw type: full flightMotor: 15 HP x 1, 10 HP x 1, 5.5 HP x 2Water consumption: ice water: 120 L/min. 5 ~ 10 °CAir consumption: 10 L/minPower consumption: 95.5 kwExtrusion linear speed:
Medium speed: 10 m/min (Ø35 mm) (EDC-08-05)
High speed: 20 m/min (Ø35 mm) (EDC-16-05)Cutting speed: 100 pcs/minTube dia range: Ø16 ~ 60 mmMachine size: 7000 x 3500 x 2300 mmTotal new weight: approx. 5200 kgCutter PLC: Delta
Medium speed: 10 m/min (Ø35 mm) (EDC-08-05)
High speed: 20 m/min (Ø35 mm) (EDC-16-05)Cutting speed: 100 pcs/minTube dia range: Ø16 ~ 60 mmMachine size: 7000 x 3500 x 2300 mmTotal new weight: approx. 5200 kgCutter PLC: Delta
