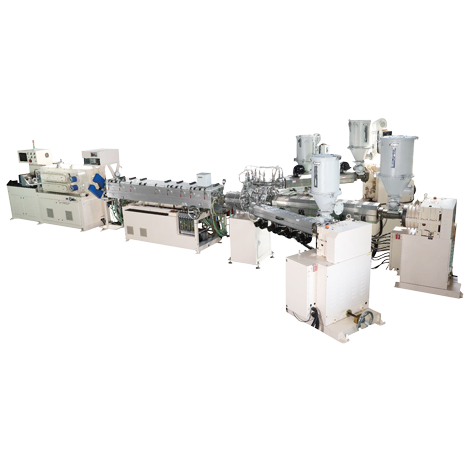

High Speed Multi-layer Extruder & Cutting Machine
EDC-16-05
(Other Model: EDC-08-05)
FEATURES:
High speed & high outputHigh precision thickness control on each layer of tubeSimplified controlQuick tooling change by one operatorClosed loop cooling water circulation systemCaterpillar haul-offAutomatic outer diameter control unit (optional)Low power consumption and high production efficiency
MAIN SPECIFICATIONS:
Screw Dia (inner): Ø65 mm, L/D: 32/1Screw Dia (resin): Ø45 mm, L/D: 32/1Screw Dia (EVOH): Ø38 mm, L/D: 26/1Screw Dia (outer): Ø45 mm, L/D: 32/1Screw Type: Full FlightMotor: 40 HP X 1pc, 15 HP X 2 pcs,
7.5 HP X 1pc, 5 HP X 1pcWater Consumption: 80 L/min, 15~20 °CPower Consumption: 150 kwExtrusion Linear Speed: Max 20 m/min (Ø35 mm)Cutting Speed: Max 200 pcs/minTube Dia Range: Ø19~50 mmMachine Size: 9450 X 4600 X 2350 mm
