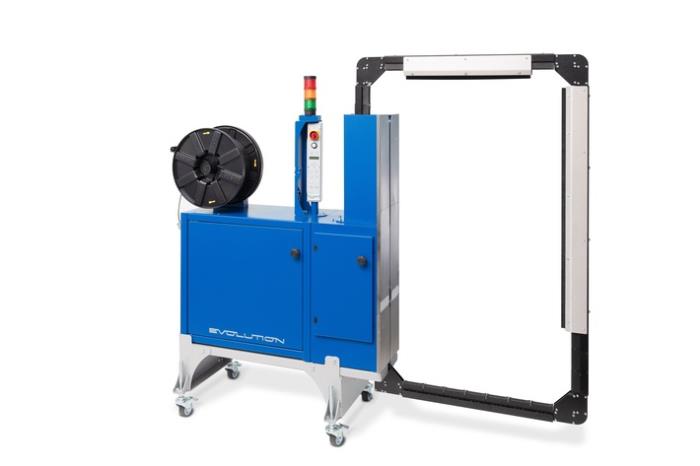

Description

- Ultrasonic sealing system with electronic self-calibration
- Can be integrated into most production lines
- High-end Standard 6 sealing unit
- Easy accessibility and tool-free disassembly of strap path components
- Dispenser variably mountable
- Hinged table top made of stainless steel
- Adjustable strap tension via control panel
- Easy operation via digital display in the control panel
- Manual strapping release via pushbutton in the control panel
- Stepless turnable control panel (0°-180°) for many-sided operation
- 4 castors
- Extremely low energy consumption
- Structural coating RAL 5010, gentian blue

Variants & Options
- Flexible foot switch for manual strap release
- Pneumatic hold-down device
- Pneumatic side-pusher
- Sealing unit for low products (heat-welding)
- Automatic adjustment of the strap tension by package height detection
- Two-part signal light
- Low strap detection with signal in the control panel
- Signal exchange via 16-pole contact plug to integrate into fully automatic production lines
- Fully automatic strap coil change by double strap dispenser
- Special conveying heights
- Special coating according to RAL scale

Technical details

Capacity:
Up to 52 cycles per minute (550 mm x 500 mm)

Frame Sizes: [W x H]
450 mm x 400 mm
550 mm x 500 mm
650 mm x 600 mm
900 mm x 600 mm / 1400 mm / 1800 mm
1300 mm x 600 mm /1800 mm
1650 mm x 600 mm / 1800 mm

Conveying Height:
310 mm to 560 mm

Straps:
Standard machine grade 5 - 12 mm wide PP straps

Strap coil dispenser:
Core diameter: 200 mm
Core width: 190 mm

Electricity:
Network data: 100 - 240 V, 50 / 60 Hz, 1L + N + PE
Power consumption: approx. 0.2 kW

Weight:
250 kg - 300 kg
