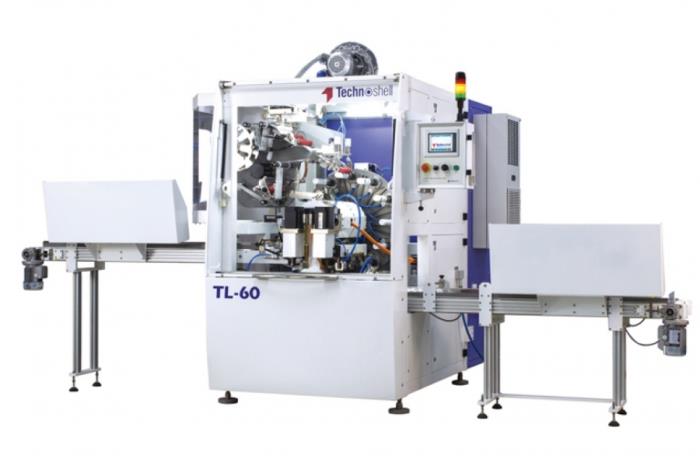

This high speed and highly accurate machine is appropriate for applying full wrap around and oriented half labeling on plastic cosmetic tubes.  This machine is ideal for:  Applying 365 degree  Full wrap around label on tubes with and without cap option.  Oriented labeling by sensing eye mark on the tube OR by sensing flip notch of flip-top caps.

Machine Description:

The 12 mandrel turnet of the TL-60 is indexed by a servo motor and the functions performed at various stations are:

• 2 station for tube loading on the mandrel
• Servo motor driven pre-orientation of tube by sensing printed eye mark on the tube OR Servo motor driven pre-orientation of tube by sensing flip notch of flip top caps (optional)
• Labeling woth servo motor driven tube rotatoin
• Servo motor operated idigenously designed efficient label dispensing unit
• Tube unloading from the mandrel onto out feed flat belt conveyor
• GOOD TUBE/BAD TUBE selection
• In-feed conveyor for tube feeding

Technical specification:

• Speed: 365 degree labeling - upto 65 tubes per minute / Oriented labeling - upto 65 tubes per minute
• Tube diameter: Dia 19mm to 60 mm
• Tube Length with cap: 80 mm to 240 mm
• Positioning accuracy of label with orientation: +/- 1mm Radially
• Electric connection: 6 to 8 bar. Dust, water and oil free
• Air consumption: 330 Lpm
• Memory for  Program Storege: Upto 500 recipes
• Operation: Fully automatic
• Machine diamentions: 4400mm x 2200mm x 2200mm
• Standard colour: Combination of RAL 9016 white and blue
• Layout: Tube flow from left to right

Features and Benefits:

• Rigid construction and simple opration
• Quick and easy change over for different tube sizes
• State-of-the-art controller system
• TUBE TEST MODE to make the machine settings with minimum wastage
• Recipe feature for fast recalll of different tube setting
• Exhaustive diagnosis features and alarm system

Options:

• Pre-Orientation of tubes with respect to flip notch of flip-top caps
• Pre treatment of tube with Corona
• Modem for remote  diagnostics

Applications:

• Full wrap around labeling
• Half labeling with respect to eye mark OR flip notch of flip top cap
