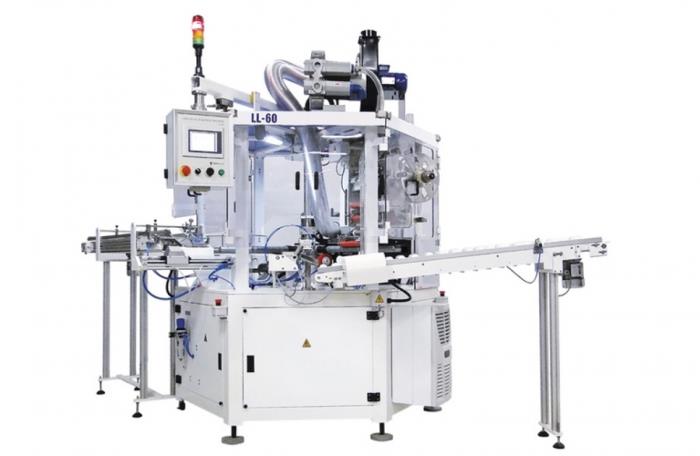

LL-60 is unique in its application as it is the first time that a machine with lacquering and labeling application on tubes is offered. This compact machine is developed for high speed label applications and can apply paper, PVC, opaque & transparent pressure sensitive labels.  The various operations that are possible on this unique machine are Corona Treatment, UV Lacquering, UV Curing and Label Application.  Combining the LL-60 with our Capping Machine CP-60+ or CP-60-OR could help you to set up a dedicated production line for labeled tubes.

Features:

• Rigid construction and simple operation
• Few change parts for different tube sizes
• UV curing
• Quick & easy change over for different tube sizes
• State of the art controller system
• Rejection of faulty tubes
• TUBE TEST MODE to make the machine settings with minimum wastage
• Recipe feature for fast recall of different tube settings
• Exhaustive diagnostic features and alarm system
• Multiple language opiton
• Modem for tele-services (optional)

Technical Specifications:

• Tube size: dia 25mm to 60mm
• Tube length: 75mm to 200mm
• Number of mandrels: 12 Nos.
• Output: upto 60 tubes/min
• Label wrap around: upto 335 degree
• Label roll diameter : upto 250mm
• Memory storage: upto 500 recipes
• Pnematic connection: 6.5 to 8 bar, oil and water free
• Electric connection: 3 x 415V, 50Hz, 9KW
• Operation: Fully automatic
• Standard paint: RAL 9016 white

Operations:

• Loading staions
• Flame/Corona treatment
• Lacquring
• UV curing
• Labelling
• Unloading
• Operator panel
• control panel
