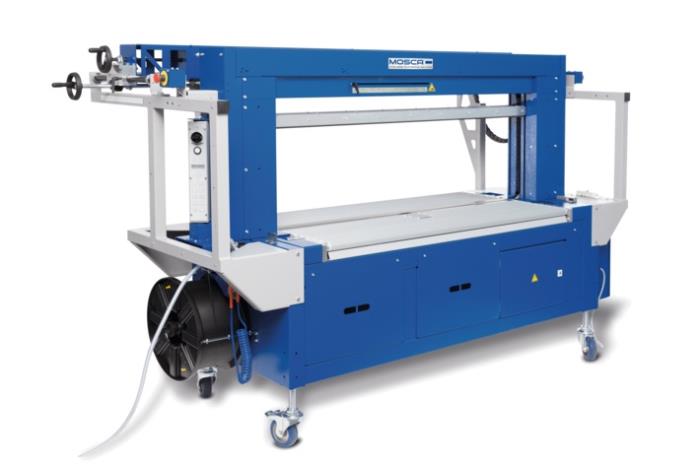

Description

- Standard Features
- Symmetrical design of the conveying system to the strapping level
- Easy accessibility and tool-free disassembly of strap way components
- Tool-free disassembly of roller system
- Easy operation over digital display in the control panel
- High-end Standard 6 sealing unit
- Ultrasonic sealing systemwith electronic self calibration
- Bundle positioning via increments by-metrical input of the strapping positions
- Pneumatic hold down device with manuel pre-positioning
- Transport by aluminium rollers
- Safety circuit for up-streamand down-stream systems
- Open design without protective coverings
- CE marking inclusive conformity declaration
- Selector switch for single, double ormultiple strapping
- Quick strap coil change
- Fully automatic strap threading
- Defined strap end detection with ejection of remaining strap
- Automatic strap loop ejection when machine cycles without bundle
- Structural coating RAL 5010 gentian blue

Variants & Options

- Traffic light warning system including low strap indication
- Special working height + 200mm
- Special coating according to RAL scale
- Pneumatic backstop withmanuel prepositioning
- Table extension
- Floor rails for easymovement

Technical details

Straps:
Standard machine grade 5, 6, 8, 9, 10 or 12mm wide PP straps

Strap coil dispenser:
Core diameter: 200 mm
Core width: 190 mm
Max. outside diameter: 430 mm

Electricity:
Network data: 100 - 240 V, 50/60 Hz, 1 PH*
Power consumption: approx. 0.4 kW

*Country specific adaption possible

Pneumatics:
Operating pressure: 6 bar (1/4 inch rapid clutch)
Air consumption: 3.5 Nl/cycle; with pneumatic hold-down device and backstop

Weight:
~538 kg (1650 x 600 mm, with hold-down device and backstop)
~640 kg (1650 x 600 mm, with hold-down device and backstop)
