Description

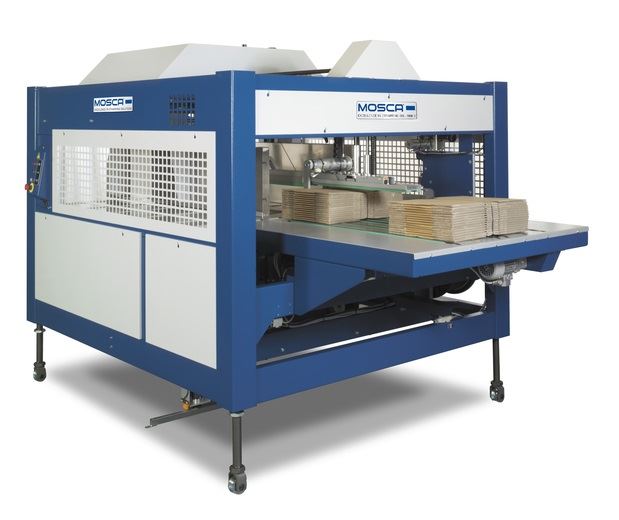

The new MOSCA MCB-2 strapping system is the latest generation of corrugated bundle strappers with integrated squaring device. The fully automatic in-line strapping machine features fast, automated setup and job changes, giving extremely high process reliability. The smooth bundle control is achieved by using the latest in brushless DC technology for the ultimate in strap sealer reliability and low maintenance. Throughput capability is up to 27 bundles per minute whilst at the same time a smooth bundle transport guaranteed.

- PLC control Siemens Type S7 with touch panel Siemens MP277
- Integrated squaring and strapping functions
- Automated setup system resets to the dimensions of the first bundle of the new size, at the push of a button or signal from the upstream equipment
- Control of five sides of the bundle provides perfectly squared, uniform bundles
- Electrically driven, variable frequency controlled squaring and top/bottom conveyors provide smooth bundle transport
- Capability to strap up to 90 mm outside the bundle centre (in 30 mm steps) allows for perfect strapping of complex bundles sizes and forms
- Electromechanical press
- Strapping in the direction of bundle travel, typically in-line with flutes

Variants & Options
- Last Bundle Out - powered conveyor belt to discharge the last bundle of each job - bundles are usually pushed by the following
- Powered centerline adjustment of machine - this is required when bundles are not centered or when strapping off-centre is required (cut outs, etc.) / in 3 steps: 30 – 60 – 90 mm
- A/C – for hot and moisture environments
- Triple indication light and low strap indicator
- Upstream pacer conveyor
- Special color
- Conveyor height > 1040 mm
- Bundle stop – in case a pacer conveyor is not available – to avoid double bundle infeed
- Auto splicing – fully automatic strap splicing device to ensure long-term production with less need to change consumables (up to 14.000 m available)
- Safety fences at the infeed position (possibly required according CE regulation)

Technical details

Capacity:
max. 25 cycles per minute

Strapping:
Machine grade 5 - 9 mm PP strap
Inquire for other strap widths

Coil dimensions:
Core diameter: 200 mm
Coil width: 190 mm

Electricity:
Voltage: 400 V (415, 440); 50/60 Hz
Consumption: approx. 4.2 kVA

Conveyor height: 800 - 1030 mm

Colour:
Frame: RAL 5010 gentian blue
Panels and guards: grey
